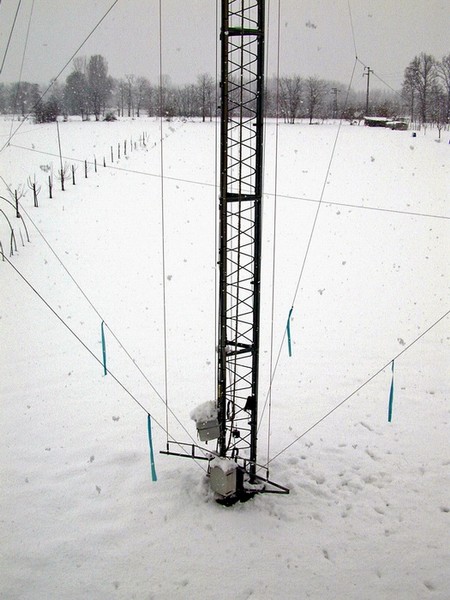

In the past Years i did many experimental Antennas dipoles, verticals, loops, one of that was a 160/80m. Shunt Feed Tower 85 feet high plus 7 bands Cubical Quad as top loaded plus 16 radials 136 feet in lenght layed on the ground, the system built up in Year 1999, three mount later for comparision i take of the sixteen  on the ground radials and i put four elevated radials 13 feet about the ground.

Performances : Results of this Antenna has been not very good, perhaps due to a very poor ground conducibility we have here in this location.

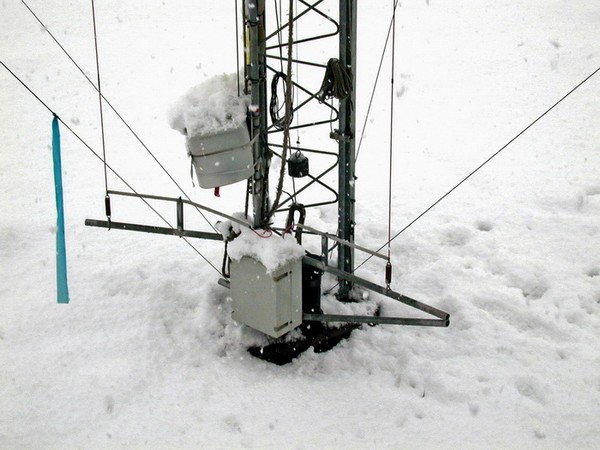

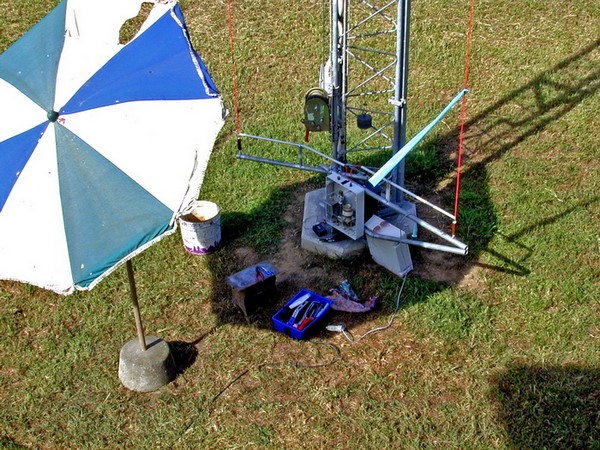

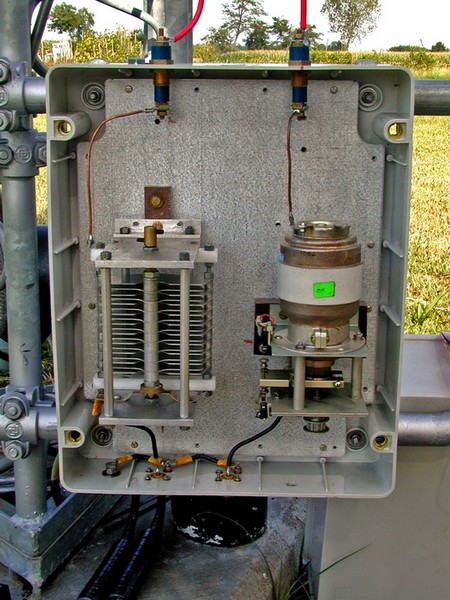

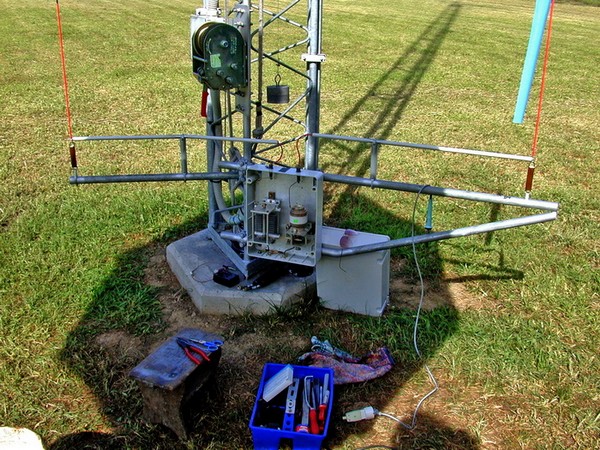

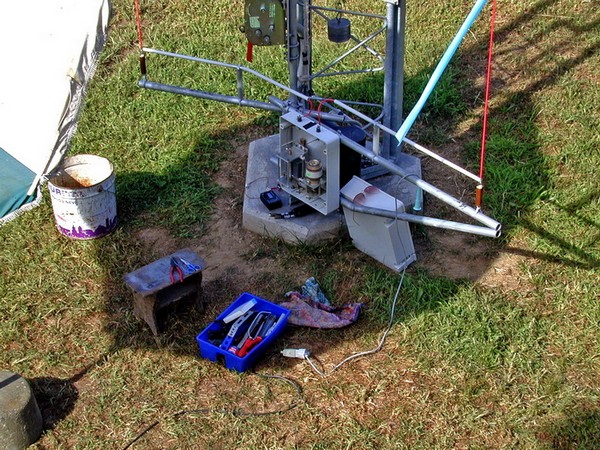

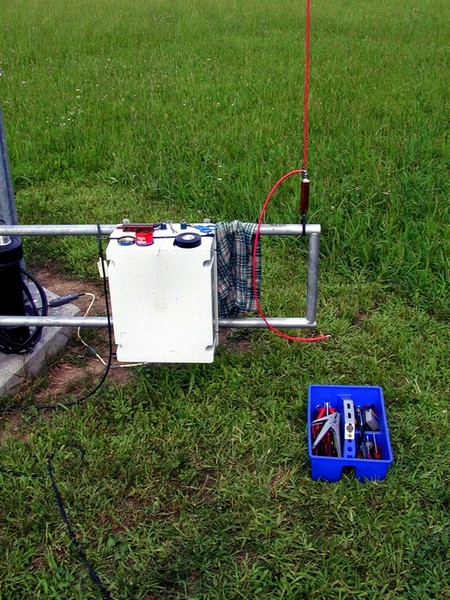

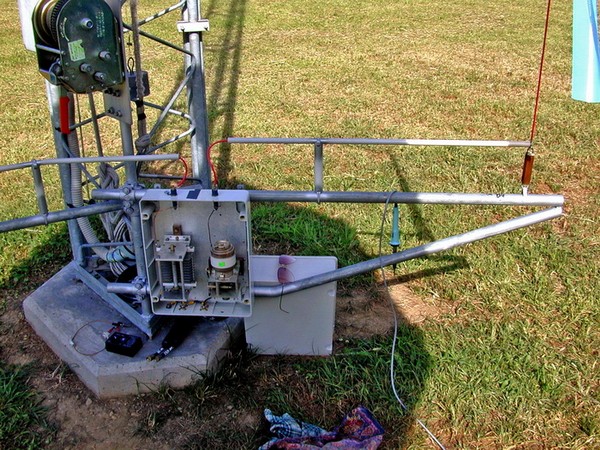

Here a photo slideshow on the assembly of a 80-160m. Shunt Feed Tower.
