30m. 2el. Cubical Quad

Antennas

30m. 2el. Cubical Quad

Early october 2003 born me the idea to add 2 elements for 30 m. on the same structure supporting 2 el. 40 m. Quad, I did it with good
results,  I feed it with Gamma Match system, no interactions was found.

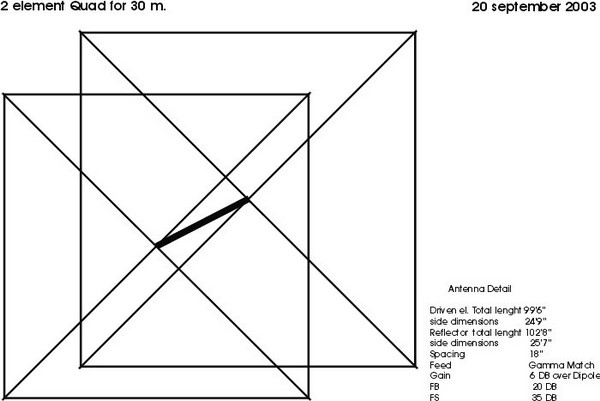

Performances : Cubical Quad 2 elements in 40m. gain over dipole    7 DB - F/B 20 DB - F/S 32 DB

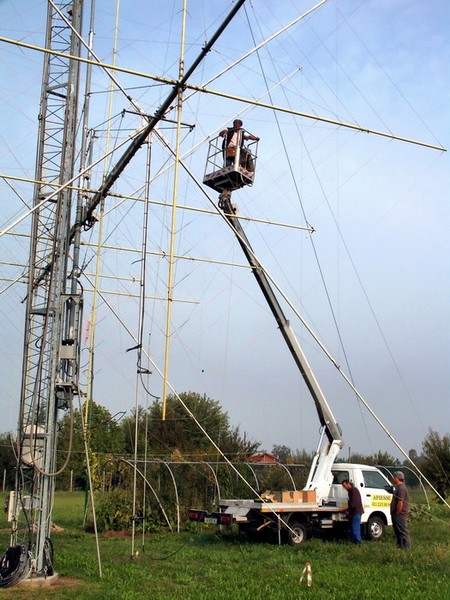

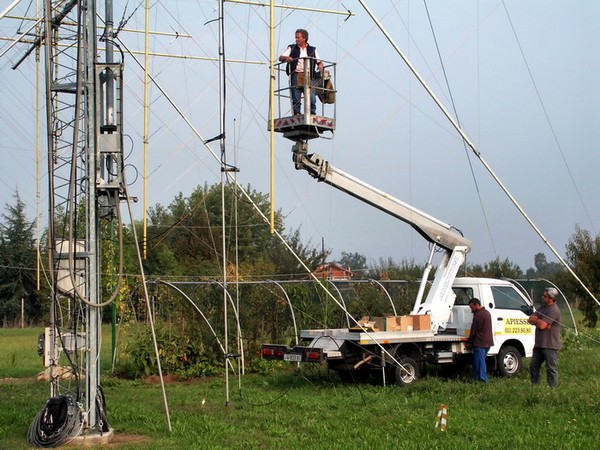

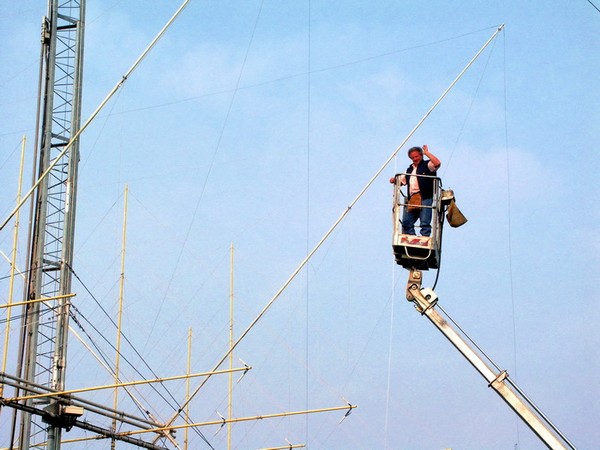

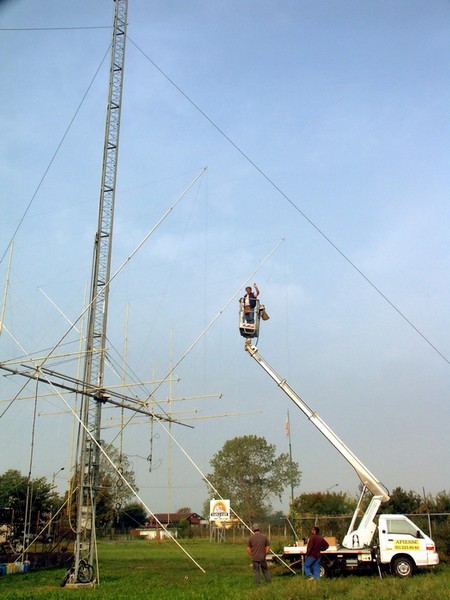

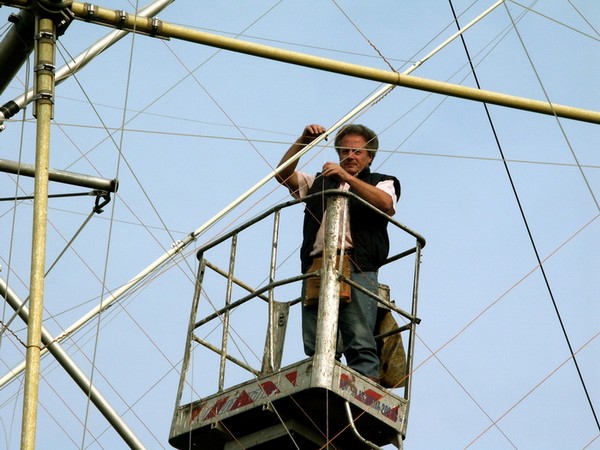

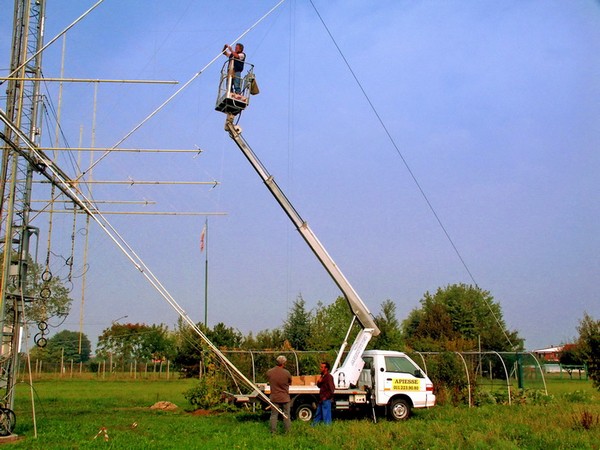

Here a photo slideshow on the assembly of 2el. 30m. Quad added to a frame wich support 40m. Quad.
